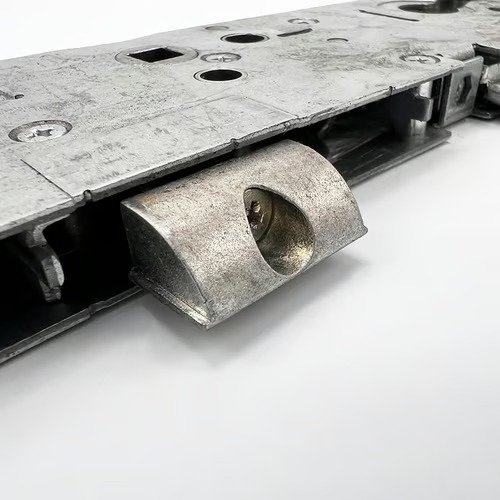

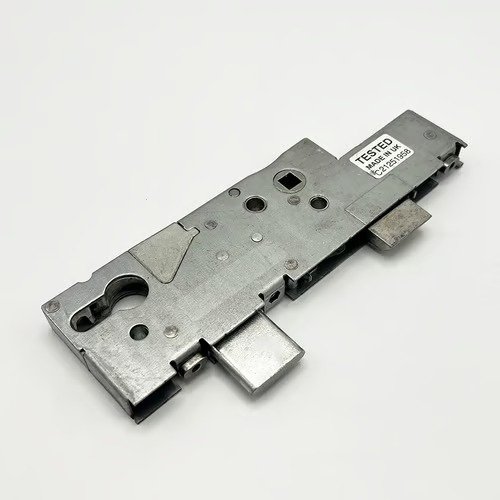

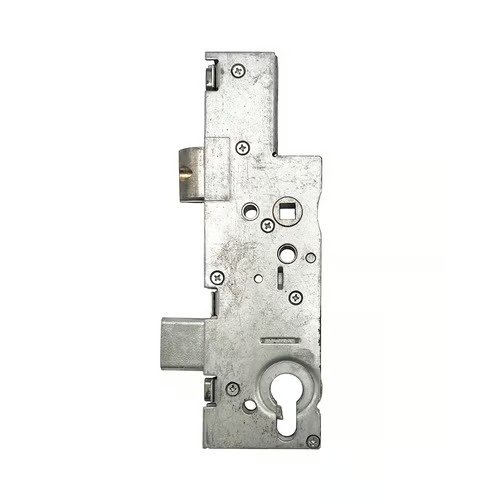

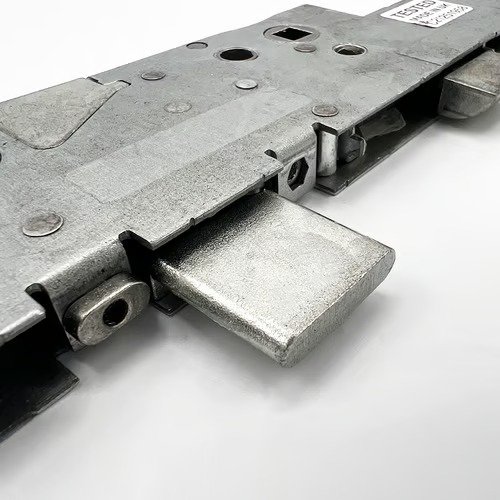

Yale Keywind Multipoint Gearbox
This gearbox suits Yale Keywind multipoint door locks and is available in a 45mm backset.
£94.96
- Centres (PZ): 92mm
- Case height: 200mm
- Case depth: backset + 12mm
