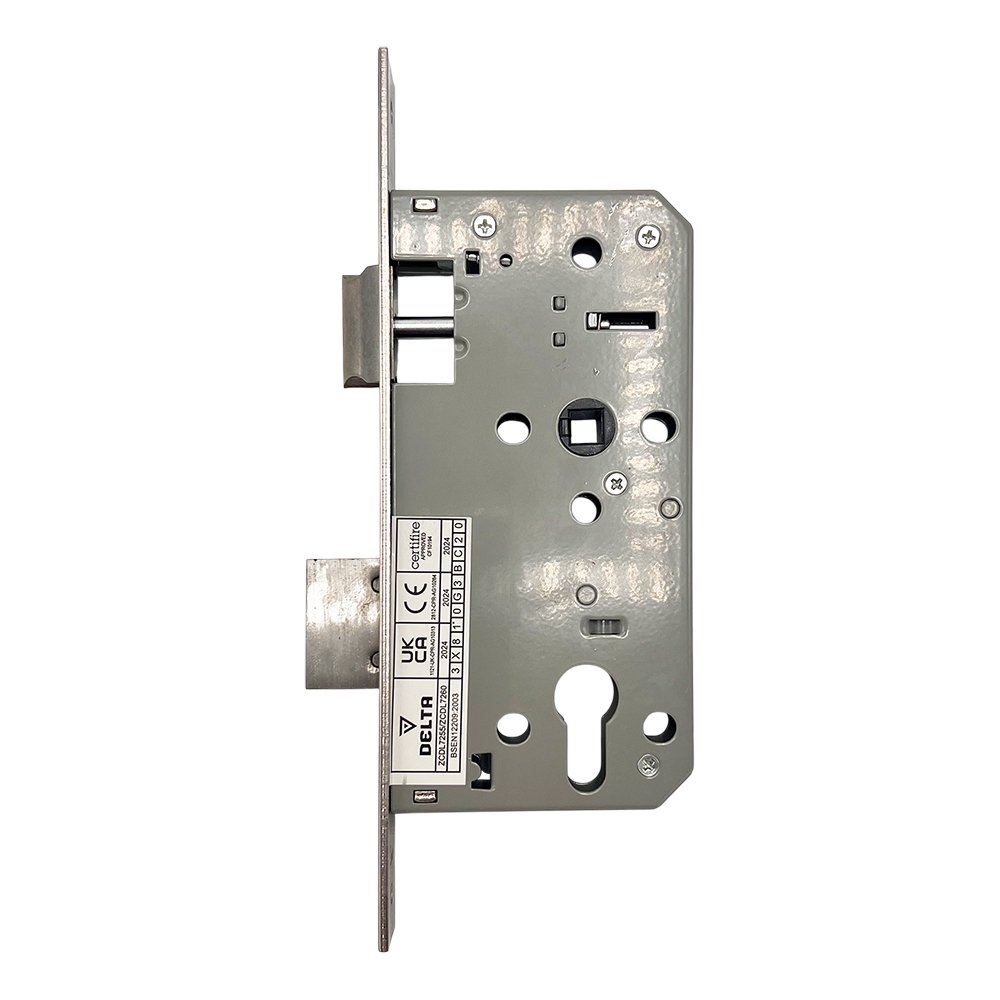

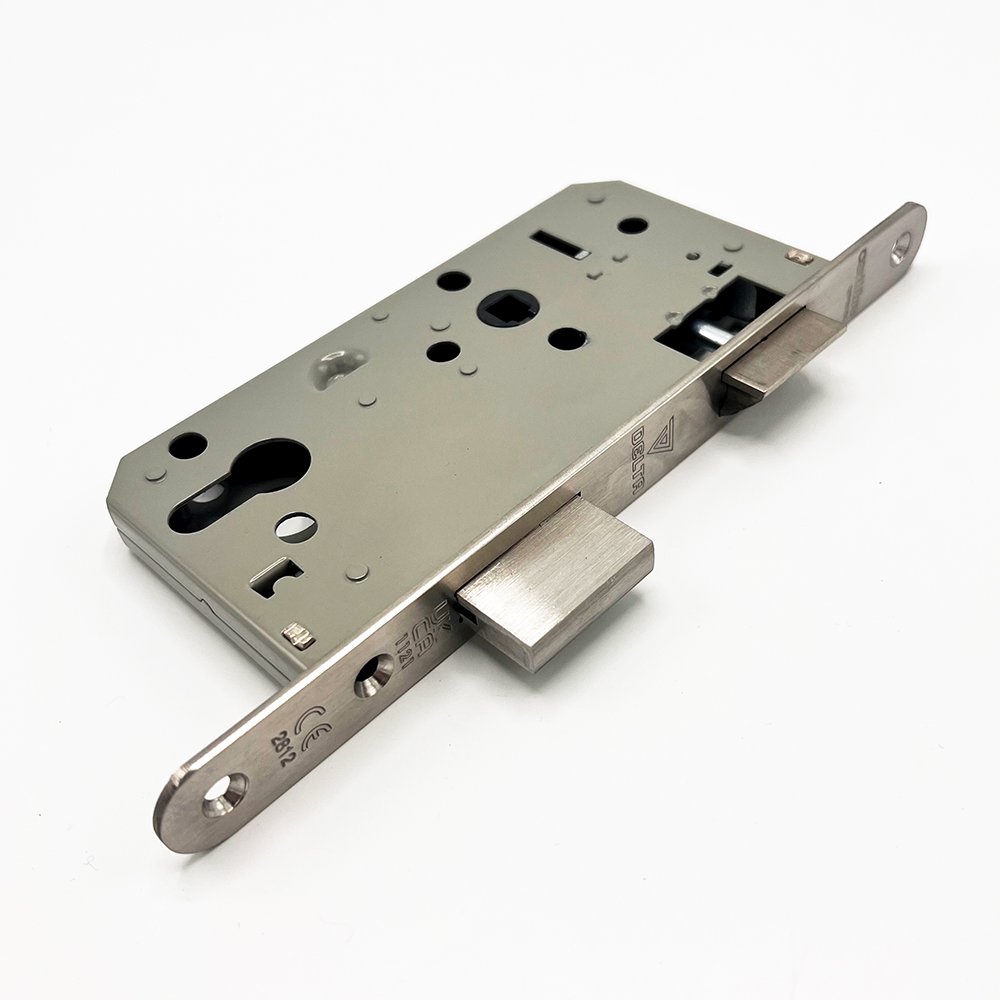

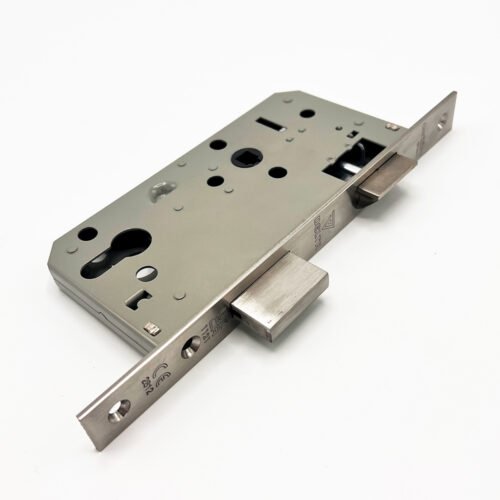

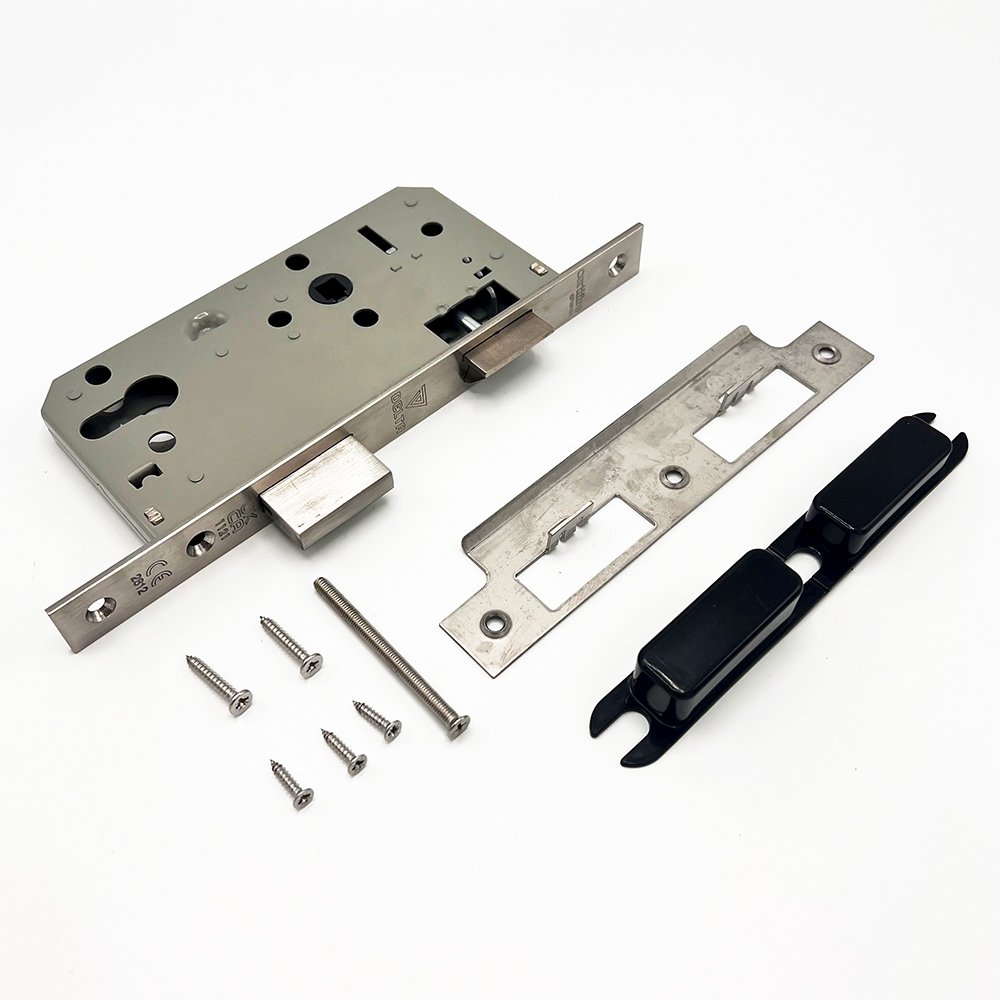

Zoo DIN Euro Mortice Sashlock Case

Zoo DIN Euro Mortice Sashlock Case is a DIN standard mortice lock.

rn

A DIN mortice lock is a type of lock that conforms to DIN standardsu2014a set of German engineering specifications established by the Deutsches Institut fu00fcr Normung (DIN). These standards ensure uniformity in size and fitting, making DIN mortice locks compatible across a wide range of doors and hardware.

rn

Product Features

rn

rn

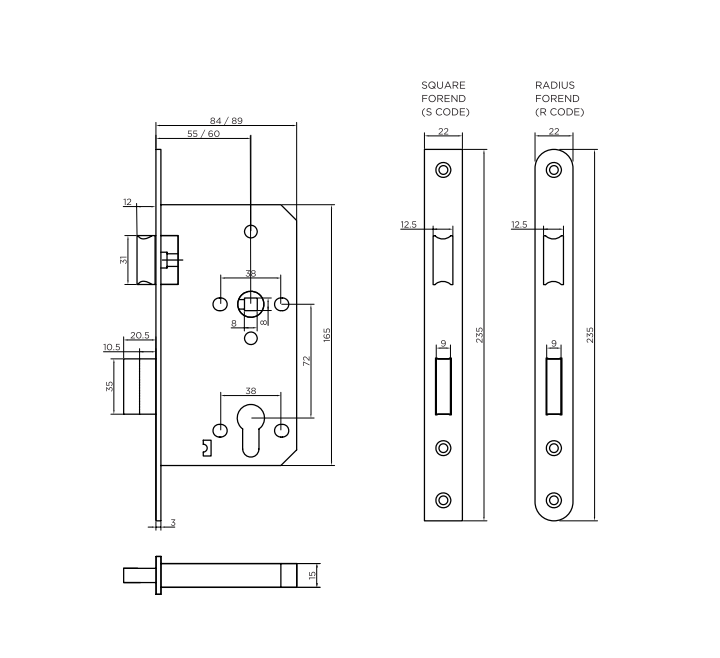

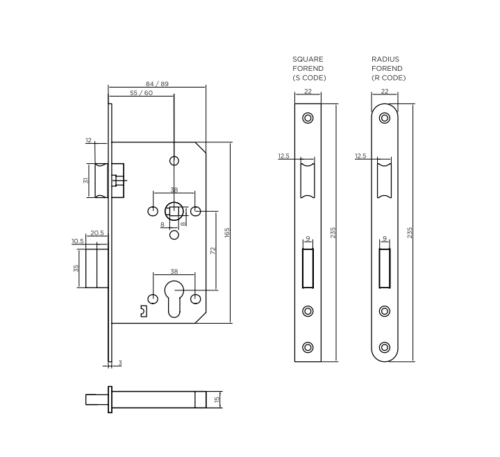

• Available in 55mm or 60mm backset

rn

• Stainless Steel single fixed forend, 22mm width

rn

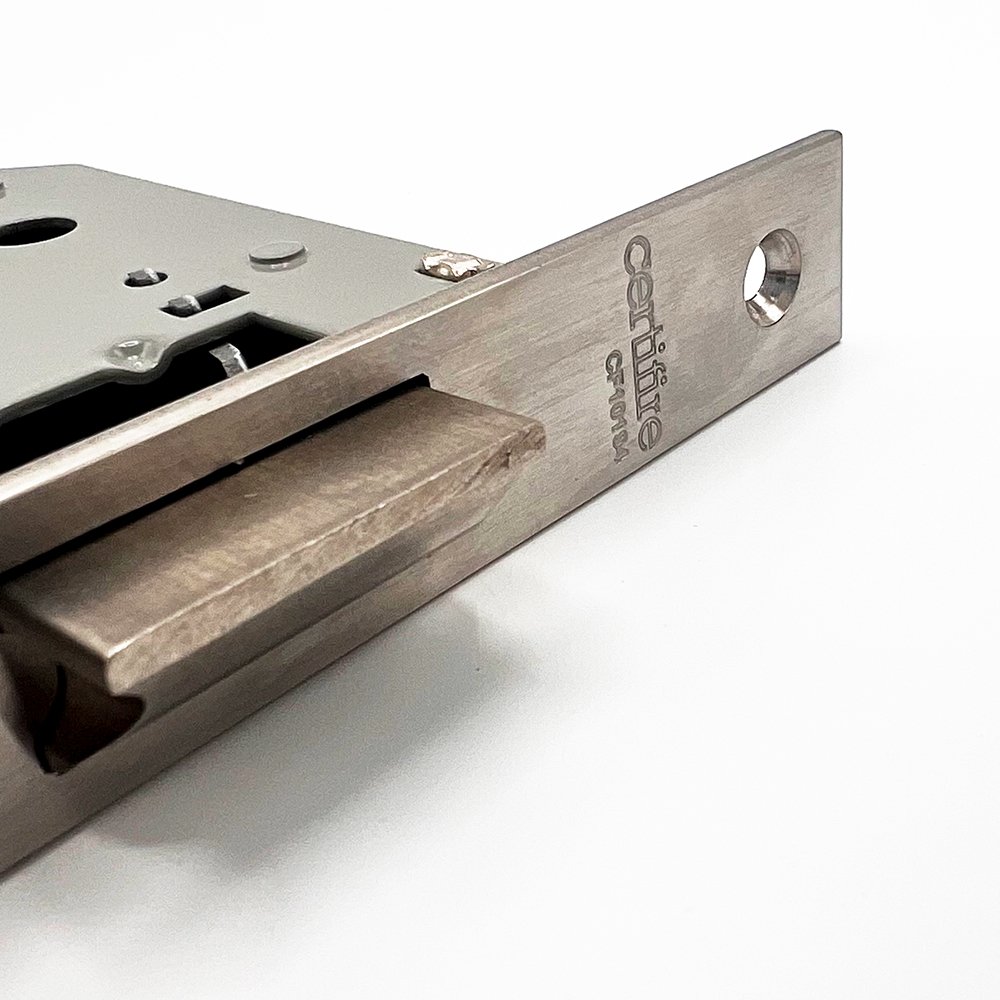

• Stainless Steel easily reversible latchbolt

rn

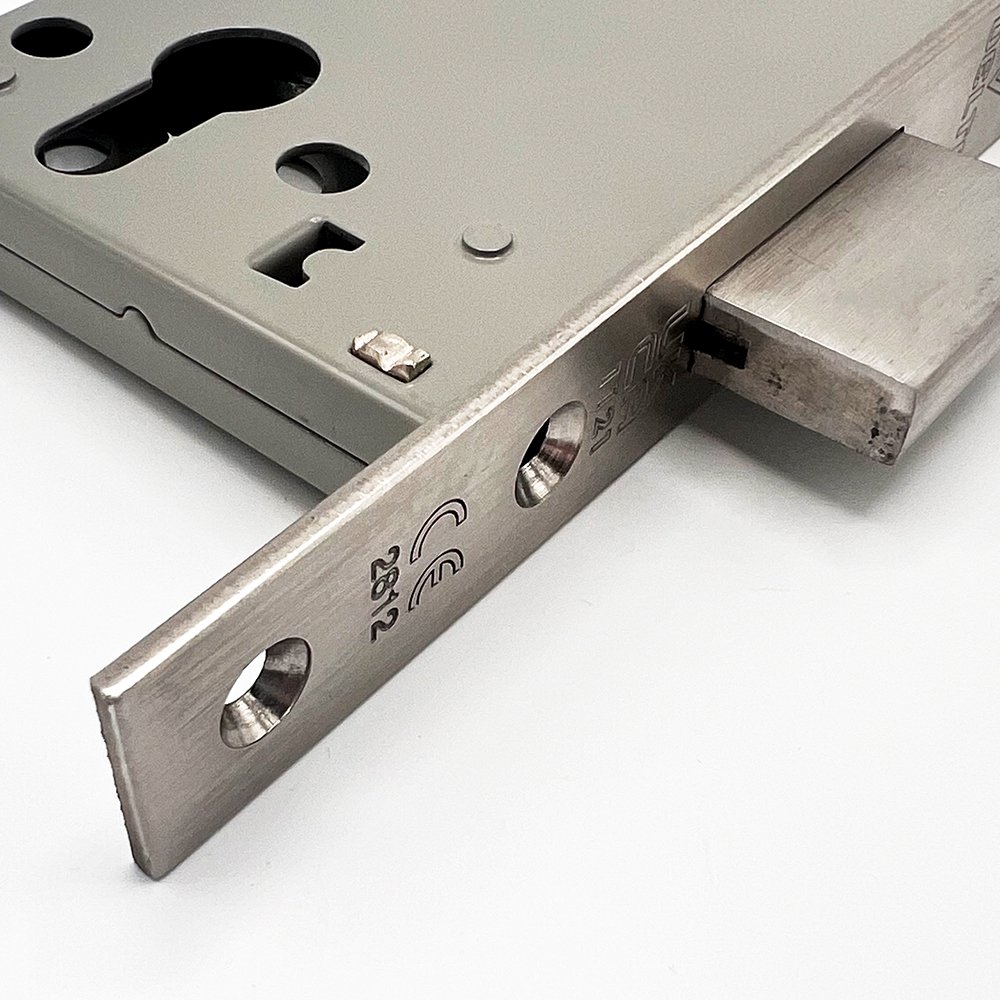

• Stainless Steel double throw dead bolt, 20mm

rn

• Euro profile case

rn

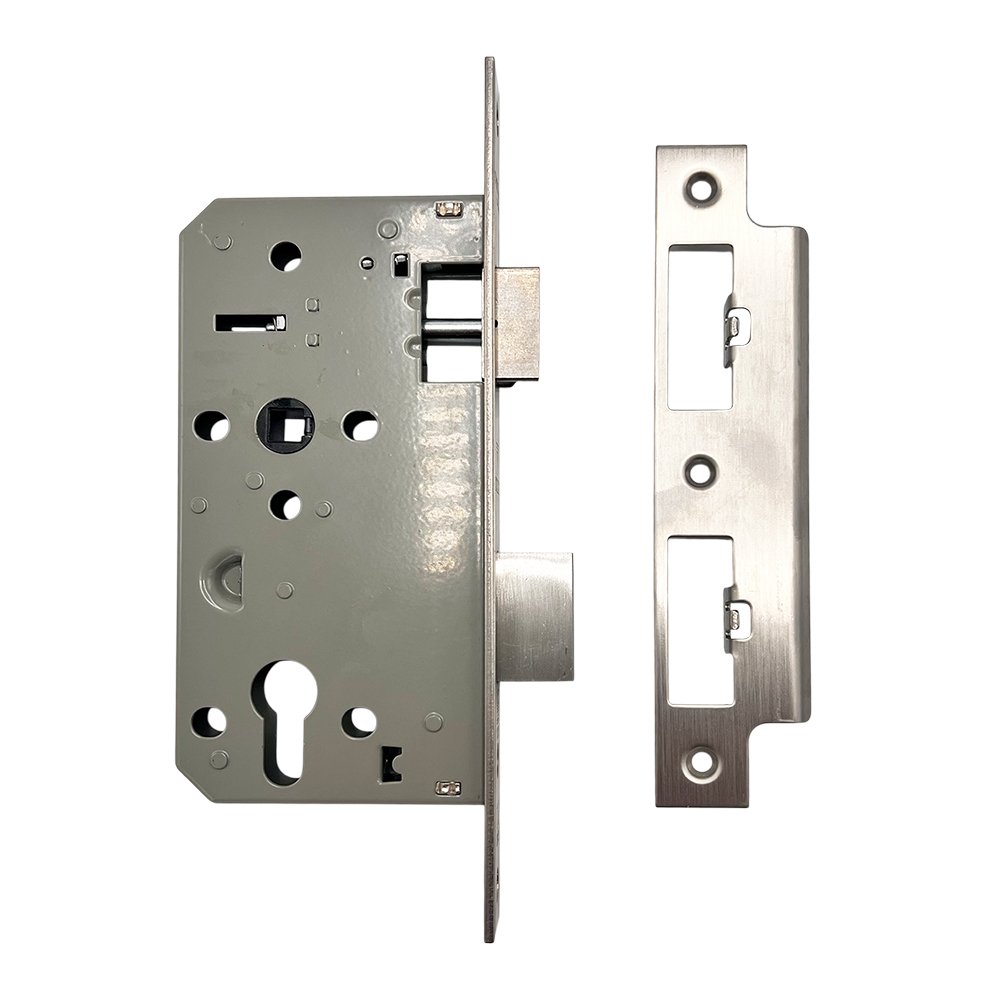

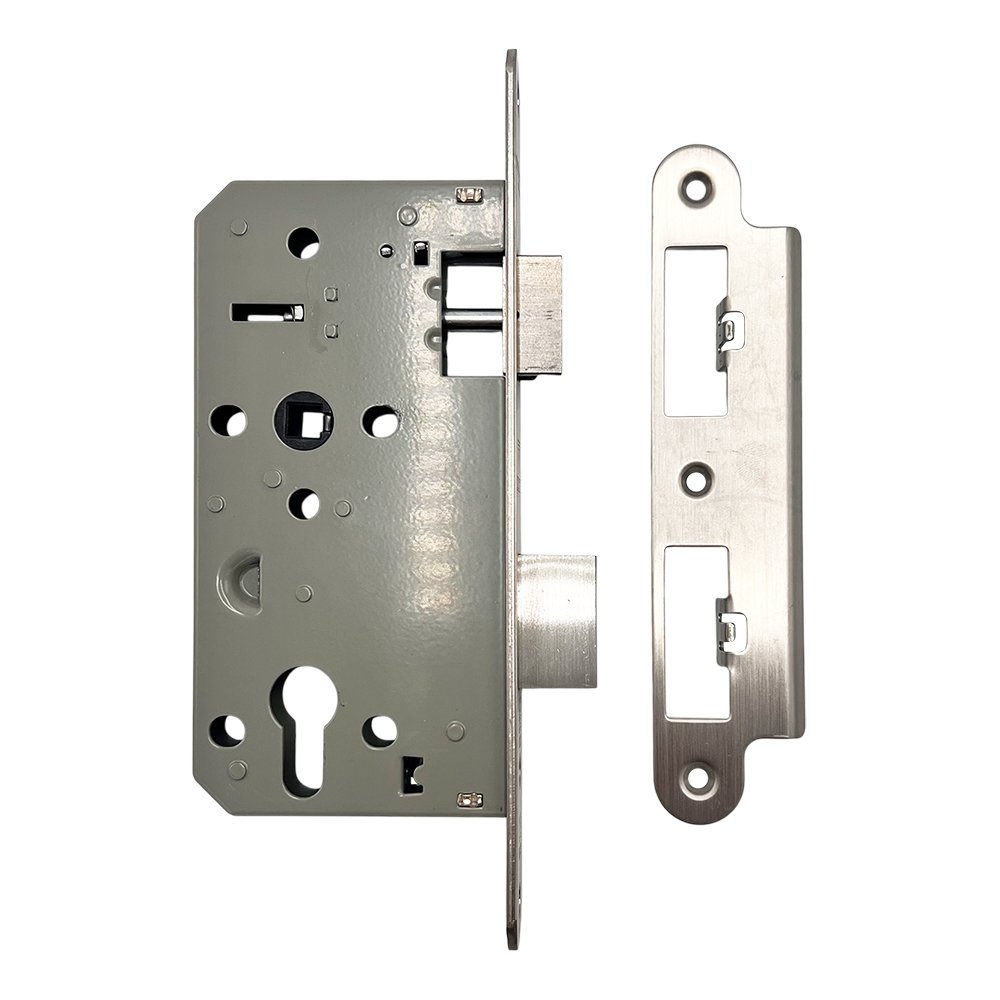

• Anti-rattle strike

rn

• Grip tight follower

rn

• 0.8mm (30 min) and 1mm (60 min) Graphite intumescent kit for use on fire rated doors supplied separately (see below table for details)

rn

rn

rn

Performance Testing

rn

Successfully tested in accordance with the requirements of BS EN12209: 2003

rn

3 X 8 1 0 G 3 B C 2 0

rn

rn

Fire Testing

rn

Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on timber fire doors up to 120 minutes and steel fire doors up to 240 minutes.

rn

rn

Certfication

rn

rn
• CE marked (Certificate AG10266)

rn

• UKCA marked (Certificate AG10315)

rn

• CERTIFIRE approved (Certificate CF10194)

rn

rn

Latch reversal procedure – For this product the latch reversal process is fairly unique and simple. Turn the lock case upside down and you should notice the small metal ‘blocking arm’ behind the latch falls out of the way. Once gravity has pulled this small arm clear, you should be able to push the latch bolt fully in to the aperture behind it and the cut outs in the side of the case should allow you to rotate the latch bolt 180 degrees and then release it back to its normal position.
